Boxer flange mounting• ISO 15552, VDMA 24562, NF E 49003.1
|
|
|
| Supply contains: 1 pc flange 4 pcs screws Data sheet (PDF) |
 |
|
|

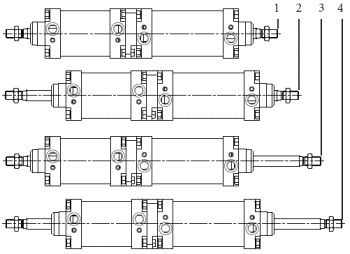

Using the boxer flange mounting, the 2 cylinders can be mounted together by end caps, so the piston rods will move against each other. If the cylinders will have the same stroke, the final assembly will have 3 positions when cylinders will be in end positions. When the cylinders will have various strokes, the fianl assembly will have 4 positions. |
||
| Piston Ø | TG | E | F | J | M | N | K | L | I | Weight | Order codes | 3D CAD model |
Inquiry / Order |
| 32 | 32,5 | 45 | 30 | 15 | 6,5 | 8 | 6,5 | 11 | 4,5 | 0,052 | 2101 2300 0032 0000 |  |
 |
| 40 | 38 | 56 | 35 | 15 | 6,5 | 8 | 6,5 | 11 | 4,5 | 0,084 | 2101 2300 0040 0000 | |
|
| 50 | 46,5 | 63 | 40 | 20 | 9 | 9 | 8,5 | 15 | 4,5 | 0,154 | 2101 2300 0050 0000 | |
|
| 63 | 56,5 | 75 | 45 | 20 | 9 | 9 | 8,5 | 15 | 4,5 | 0,223 | 2101 2300 0063 0000 | |
|
| 80 | 72 | 95 | 45 | 25 | 12 | 12 | 10,5 | 18 | 4,5 | 0,511 | 2101 2300 0080 0000 | |
|
| 100 | 89 | 115 | 55 | 25 | 12 | 12 | 10,5 | 18 | 4,5 | 0,774 | 2101 2300 0100 0000 | |
|
| 125 | 110 | 140 | 60 | 30 | 15 | 13 | 12,5 | 20 | 6,5 | 1,714 | 2101 2300 0125 0000 | |
|
| 160 | 140 | 185 | 65 | 35 | 17,5 | 15 | 16,5 | 26 | 6,5 | 2,945 | 2101 2300 0160 0000 | |
|
| 200 | 175 | 235 | 75 | 35 | 17,5 | 15 | 16,5 | 26 | 6,5 | 4,844 | 2101 2300 0200 0000 | |
|
| 250 | 220 | 270 | 90 | 45 | 21,5 | 18 | 21 | 34 | 10,5 | 8,167 | 2101 2300 0250 0000 | |
|
| 320 | 270 | 350 | 110 | 50 | 27 | 20 | 25 | 40 | 10,5 | 15,47 | 2101 2300 0320 0000 | |
|
