Guide unit "H" with ball bearings |
|
• ISO 15552, VDMA 24562, NF E 49003.1
|
|
Supply contain: 1 pc guide body 1 pc flange 2 pcs guide rods 1 pc flange for fix to the cylinder |
Guide unit can be mounted to any pneumatic cylinder to VDMA 24562 (there is necessary to use option 13 for cylinders with magnetic piston dia. 32 to 63 mm), ISO 15552, compact cylinders (only for cylinders with internal thread on piston rod) or DIN ISO 6432. Guide secures piston rod against rotation, high torque loads and radial forces. Guide rods are mounted in ball bearings without clearance.
Order codes, technical data | Dimensions | Data sheet (PDF) |
Order codes
2101 500 00 050 0100 |
|||||||||||||||||||||||||||||||||||||||||||||
|
3D CAD model, inquiry, order

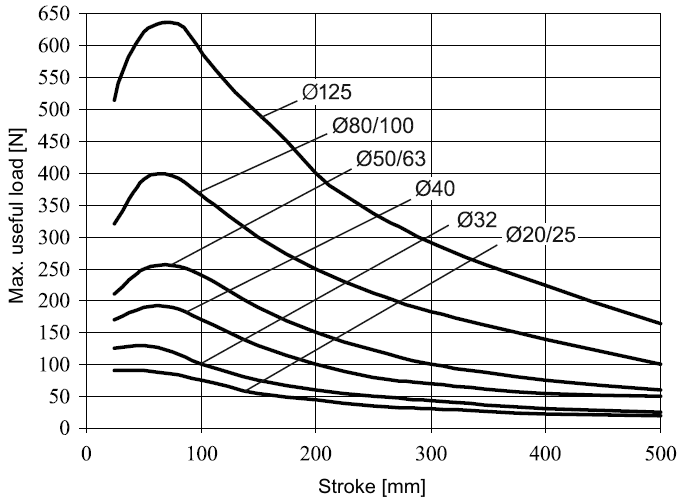

Useful load |

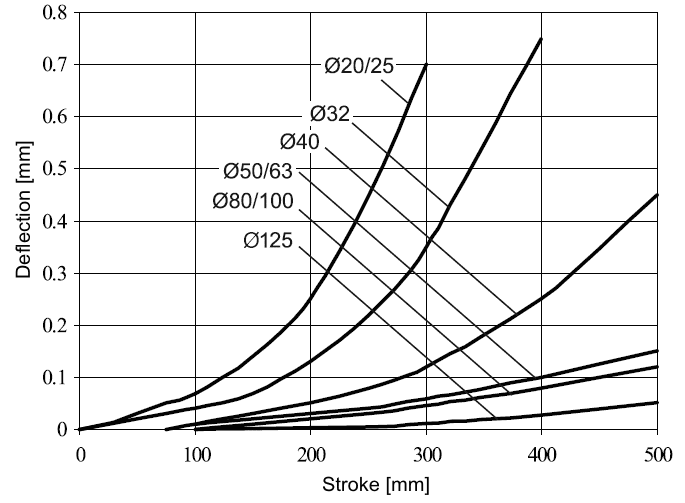

Deflection caused by load of 10N |
Cosntruction / materials
- guide bars: grounded hardened steel bar Cs-53 with hard chrome plated surface
- guide body: aluminium casting
- flange and nut: zinc plated steel
- bearings: covered linear ball bearings
Piston diameter | 20 | 25 | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
Weight 0 mm stroke [kg] | 0,86 | 0,86 | 1,57 | 2,54 | 4,08 | 5,87 | 10,46 | 14,13 | 21,78 |
Weight add. per 1 mm stroke [kg] | 0,002 | 0,002 | 0,002 | 0,003 | 0,005 | 0,005 | 0,008 | 0,008 | 0,011 |
