3D CAD models
We have prepared on-line 3D CAD catalogue of pneumatic components for you. This catalogue is especially for designers, which uses 3D CAD system (SolidEdge, Pro/ENGINEER, SolidWorks, etc.) and wants to use our products into their machine assemblies and units. Regarding the import possibility of your CAD system, the proper file format could be chosen. Our 3D catalogue support the following file formats:
|
 |
How to generate 3D CAD model - pneumatic cylinder:
- you will find the button for generate 3D CAD model on the page with pneumatic cylinder
- select the cylinder configuration as cylinder type, equipment, options, piston diameter, then click to Generate 3D CAD model button and continute in next step
- the new window will open and you will be prompted for cylinder stroke and piston rod position (extension from 0 to max. stroke), then select the file format (regarding the import capability of your CAD system), finally, enter your e-mail address, where the generated model will be sent
ATTENTION: if the new window will not open automatically, you have probably selected blocking of automatically opened window in your browser. For correct function of 3D catalogue, please turn off this feature. Also port 60080 must be accesible for you. (You can easily check accessibility by clickin on this link). - press button for generate and send the 3D CAD model

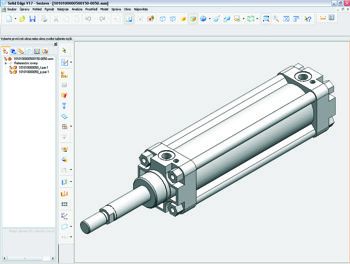

- after few moments, the file with name (for example) "1010100000500150-0050" and with file extension accordingly to your option will be delivered into the entered e-mail address (number before dash "1010100000500150" is order code of cylinderand number after dash "0050" id piston rod position)
How to generate 3D CAD model - mounting accessories for pneumatic cylinder:
- you will find the button for generate 3D CAD model on the page with mounting accessories - press it
- the new window will open and you will be prompted for the file format (regarding the import capability of your CAD system), and for your e-mail address, where the generated model will be sent
ATTENTION: if the new window will not open automatically, you have probably selected blocking of automatically opened window in your browser. For correct function of 3D catalogue, please turn off this feature. Also port 60080 must be accesible for you. (You can easily check accessibility by clickin on this link). - press button for generate and send the 3D CAD model
- after few moments, the file with name (for example) "2110010000120000" nd with file extension accordingly to your option will be delivered into the entered e-mail address (number "2110010000120000" is order code of accessories)
